Generators are the backbone of stable power for industrial plants, commercial establishments, and even private estates. But what keeps the power stable, secure, and consistent? It is none but the Automatic Voltage Regulator AVR in generator, a very tiny but powerful component that makes your generator not only work, but work flawlessly. This article delves deep into what an AVR is, how it functions, and why it’s critical for your operations, especially if you’re in sectors where power consistency means everything.
Whether you're a factory manager operating factory systems, a commercial property manager of real estate properties, or responsible for high-value residential systems, discovering how the AVR can benefit you can save you money, time, and undue stress. Let us uncover how this behind-the-scenes hero in your generator gives you constant power, minus the drama.
Understanding the Function of AVR in Generators
What Is the AVR in Generator?

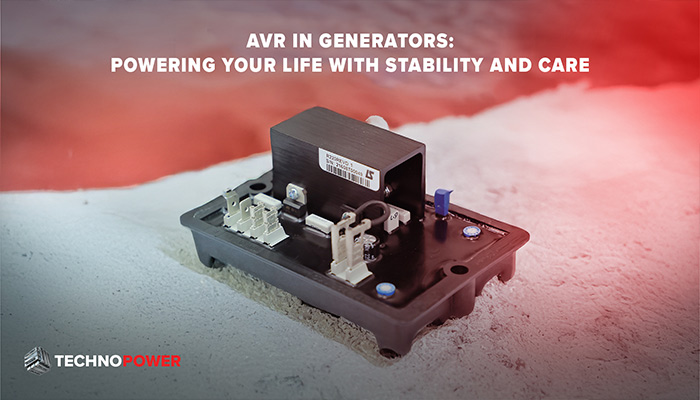

Automatic Voltage Regulator AVR is an electronic component within a generator that automatically keeps the voltage level constant for the protection of the generator as well as the connected load. In other words, it maintains your power supply smooth and even when the load demand is changing.
Think of the AVR to be the mind of your generator. Just as how your mind controls the actions of your body to the world around it, the AVR constantly monitors and controls the voltage produced. Without the AVR, your sensitive electronics and machinery would suffer from over-voltage, under-voltage, or voltage spikes, resulting in overheating, malfunction, or total failure.
To industrial and commercial facilities, where equipment operates under tight voltage tolerances, this can be the margin between seamless operation and catastrophic shutdown. Even in residential settings, voltage swings can destroy appliances or critical systems like HVAC or home security systems.
AVRs operate in both brushless and synchronous generators, which are utilized across a wide range of sizes, from the handheld 5 kVA generators to the very large 1000+ kVA industrial gensets.
Why Do Industrial, Commercial, and Residential Generators Need an AVR?
Let's break this down by industry:
Industrial Application:
In factory or manufacturing environments, where heavy machinery is highly power-quality sensitive, a voltage fluctuation can cause machines to trip, halt production, or destroy automation systems. AVRs prevent these voltage spikes or dips from occurring, preserving the supply chain and minimizing economic losses due to machine failure.
Commercial Application:
Office complexes, shopping malls, and commercial complexes all contain vital infrastructure, elevators, lighting systems, POS terminals, and server rooms. Having a stable voltage not only avoids equipment burnout but also ensures regulatory compliance and safety measures. AVRs ensure that there is an environment where operations remain smooth, even in the event of blackouts.
Home Use
High-end homes and villas can rely on standby generators for power supply for smart home networks, security systems, lights, and air conditioners. AVRs ensure there is a smooth switch over to generator power and will not damage appliances. Erratic voltage may ruin expensive electronics or cause smart systems to function abnormally.
How Automatic Voltage Regulators AVRs Work
AVR in Generator Circuit Explained
An AVR is inserted between the generator's exciter and the main alternator windings. When the generator is running, the AVR senses the output voltage and makes micro-adjustments to the excitation system so that it increases or decreases the voltage accordingly to maintain it at a setpoint.
The following is a step-by-step, simplified analysis of how the circuit operates:
Voltage Sensing:
The AVR senses the terminal voltage of the generator via a sensing coil.
Signal Processing:
The actual voltage is monitored against the desired set voltage. When there's a discrepancy, the AVR produces a control signal.
Excitation Control:
The AVR varies the current fed to the rotor via the exciter to regulate the output voltage.
Feedback Loop:
A repetitive loop, sensing, comparing, adjusting, within milliseconds.
In most of the modern systems, the AVR relies on microprocessors, which are very accurate and responsive to changes in loads dynamically. It compensates for voltage sag due to starting the motors, sudden addition of loads, or irregular consumption. The AVRs in industrial-grade TechnoPower gensets are equipped with short-circuit protection, phase balancing, and even remote monitoring features.
AVR in Generator Working Principle
The working principle is of closed-loop voltage regulation. Let's drill a bit technically:
When the generator is energized, its prime mover gas engine or diesel engine rotates the alternator shaft, which induces a rotating magnetic field in the rotor. The rotating magnetic field passes through stator windings to induce an AC voltage.
But the voltage developed is determined by the strength of the magnetic field, and this is where the AVR comes in. It controls the field current in the rotor by adjusting the exciter's output. When the load increases and voltage starts to drop, the AVR boosts the field current, which strengthens the magnetic field and restores the voltage to its original value.
In TechnoPower systems, our AVRs are pre-programmed with intelligent logic that detects the nature of the load, resistive, inductive or capacitive, and then voltage parameters are set accordingly to provide cleaner, safer power.
If you are unsure whether AVRs are suitable for your current generator setup, simply get in touch with us directly. Our engineers provide on-site assessments and upgrade recommendations that meet your operating goals.
Different Types of Generator AVRs Sets
AVRs come in various configurations and are categorized based on functionality, complexity, and the type of generator system they can support. Choosing the right AVR is not just a question of compatibility, it's about optimizing performance and extending the life of your generator and related equipment.
The following are the main types of AVRs used in industrial, commercial, and residential applications:
Single-Phase AVRs
Most suited for small and medium generators, especially those rated below 10 kVA. They are common in domestic applications where loads are low and sensitivity to power matters.
Three-Phase AVRs
Most ideal for high-class, complex systems employed in industries and commerce. These AVRs regulate voltage between three phases with the aim of balanced distribution and protection of highly demanding equipment.
Digital AVRs
The most advanced one, with microprocessor control, programmable voltage set points, real-time monitoring, and off-site system communication. These are perfect for installations requiring remote monitoring or automatic power management.
Brushless AVRs
These are used in brushless generators—equipment that does not use slip rings or brushes. Brushless AVRs have no maintenance requirement and provide stable performance in harsh environments.
Hybrid AVRs
These are a combination of analog control and digital monitoring. They offer the consistency of analog systems with the adaptability and reporting of digital interfaces.
Pro Tip: Don't oversize. Each AVR must be sized by the generator power rating, application type, and environmental needs. TechnoPower sizes AVRs to your generator model and load profile specifically, ensuring you with correct voltage regulation and maximum efficiency.
Choosing the Right AVR for Your Generator Setup
It is not simply a matter of plugging in a component to choose the right AVR. You must look at some technical and practical considerations to make it compatible and provide its best performance. What you have to look for is this:
Generator Specs:
Get to know the voltage rating, phase type single or three-phase, and power output. The AVR must be compatible with these specs.
Load Sensitivity:
If your equipment is sensitive, like medical gear, data servers, or precision instruments, you’ll need a high-quality AVR with fine-tuned regulation capabilities.
Environmental Conditions:
Dust, heat, humidity, and vibration can affect AVR performance. Ruggedized AVRs are available for harsh industrial settings.
Future Scalability:
Choose an AVR that supports add-ons or software updates if your power needs are expected to grow.
Budget vs. Risk:
A cheap AVR will save you money today, but cause equipment failure or downtime in the future. Spending money on reliability is wiser, as TechnoPower believes that all generator sets deserve.
Want expert advice? Contact TechnoPower today for a customized AVR suggestion and installation plan tailored to your generator system.
AVR Installation and Generator Integration
AVR in Generator Wiring Diagram
It may look daunting at first sight to wire an AVR, but if the sequence of connections is kept in mind, the process is easier to comprehend. AVRs typically involve connections to:
Voltage Sensing Input: Checks the generator output voltage.
Excitation Output: Supplies the corrected current to the exciter field.
Power Input: Obtains its operating power, usually from auxiliary windings.
Protection Relays: Connects to over-voltage and under-voltage circuits.
In a standard TechnoPower installation, the AVR is mounted near the alternator or inside the control panel. It features a terminal block designated for:
Sensing S1, S2
Field Excitation F+, F-
Power Supply P1, P2
External Voltage Adjust VR
Safety Precautions during AVR Installation
AVRs control high voltages and are directly connected to generator internals. Safety is thus at a premium while installing and maintaining them. Fires, electric shock, or equipment failure can be caused by improper wiring or calibration.
Safety essentials:
Turn Off Generator Power:
Always de-energize the generator about the load and main switchboard before installation.
Use Insulated Tools:
Avoid short circuits or electrical injury by accident.
Check Polarity and Phase:
Mis-matched connections will burn the AVR in a split second. Be extremely careful to adhere to the wiring diagram.
Grounding:
Grounding is required to avoid floating voltages or unwanted surges.
Testing After Installation:
Test the generator using a dummy load to verify AVR performance before reconnection to live equipment.
Protective Gear:
Use gloves, face shields, and arc-rated clothing when making connections while testing.
Remember: Safety is not a choice, but a requirement. Our qualified technicians at TechnoPower follow international safety protocols to install and set up AVRs for any generator model and configuration.
